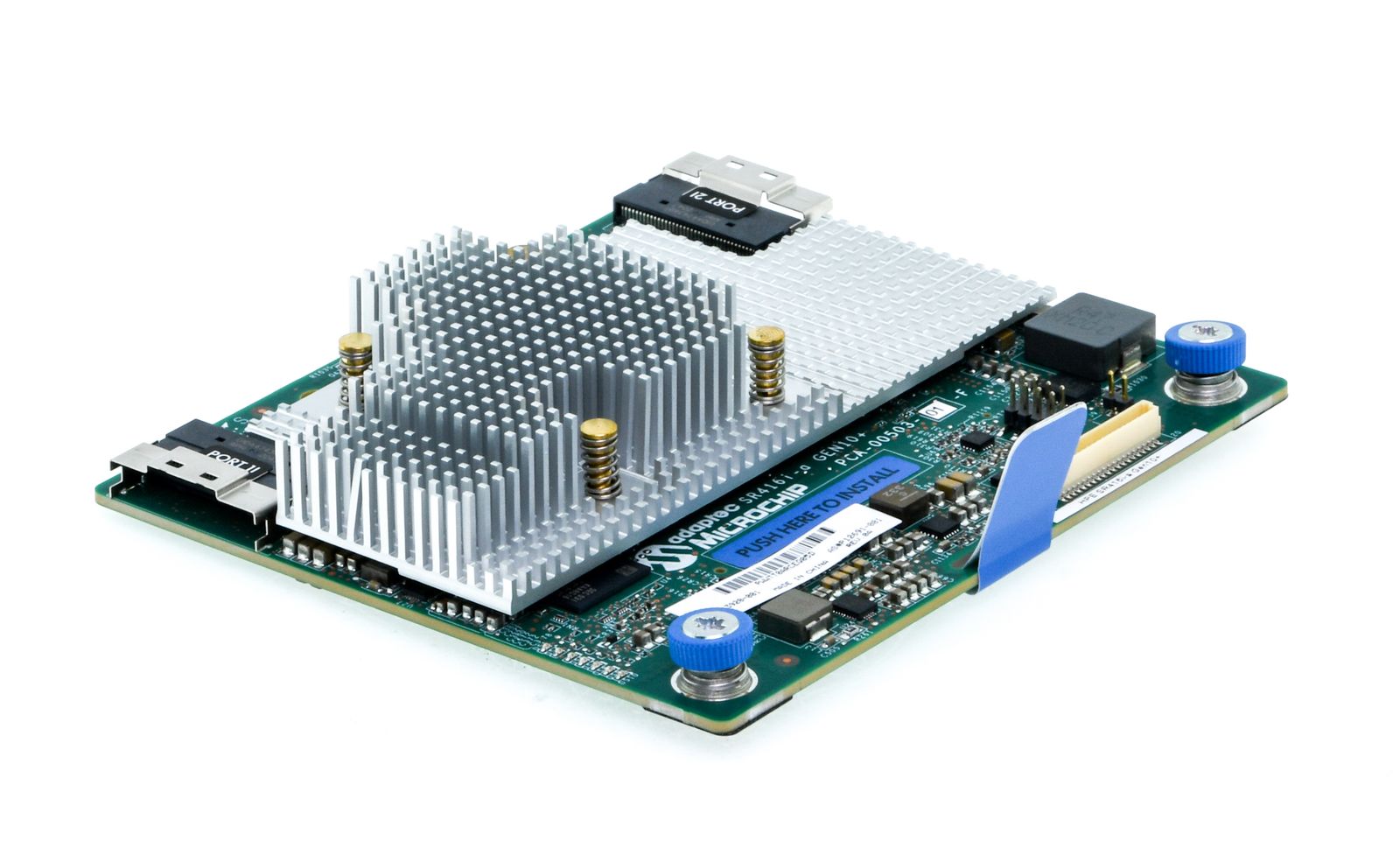

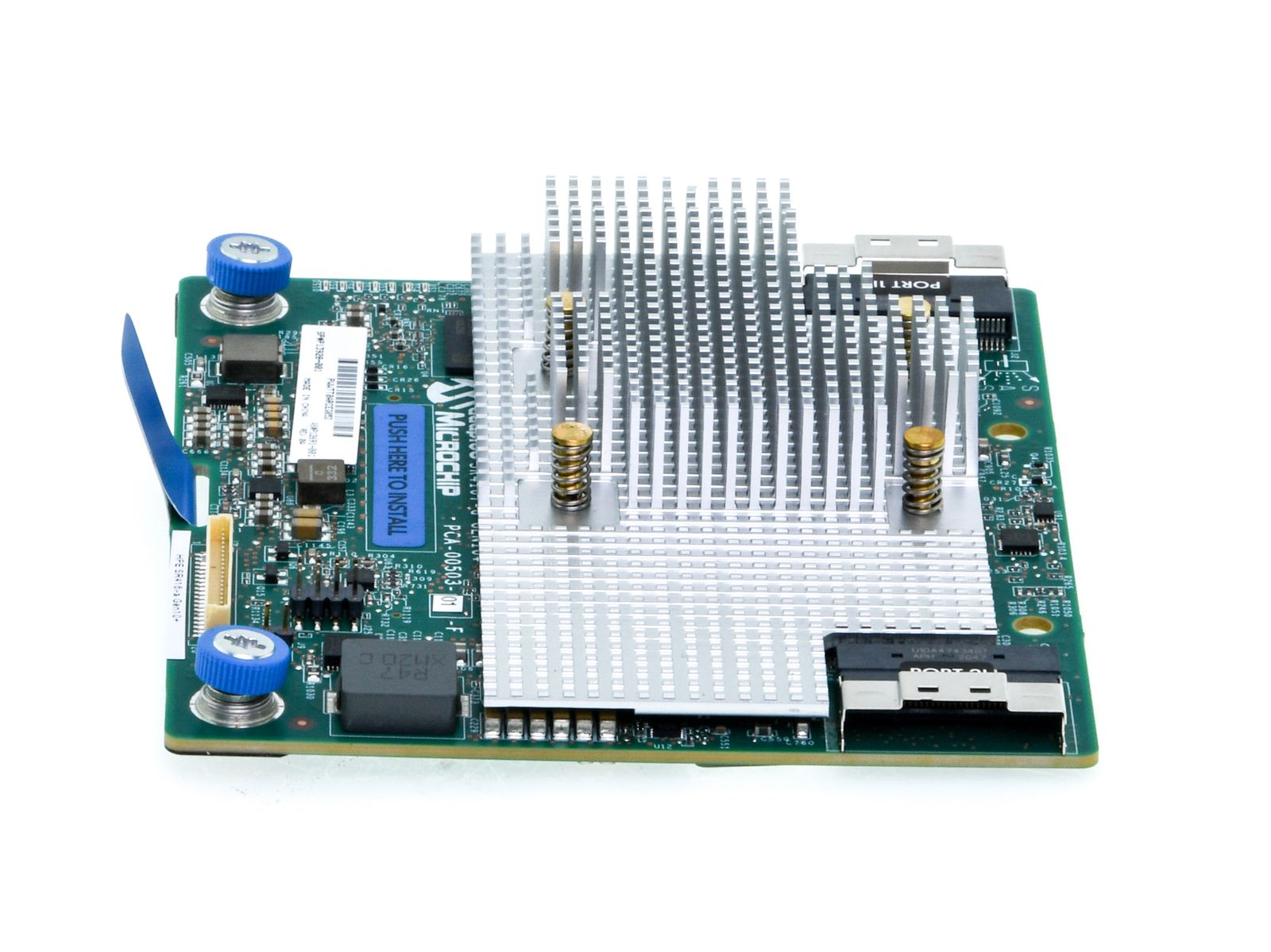

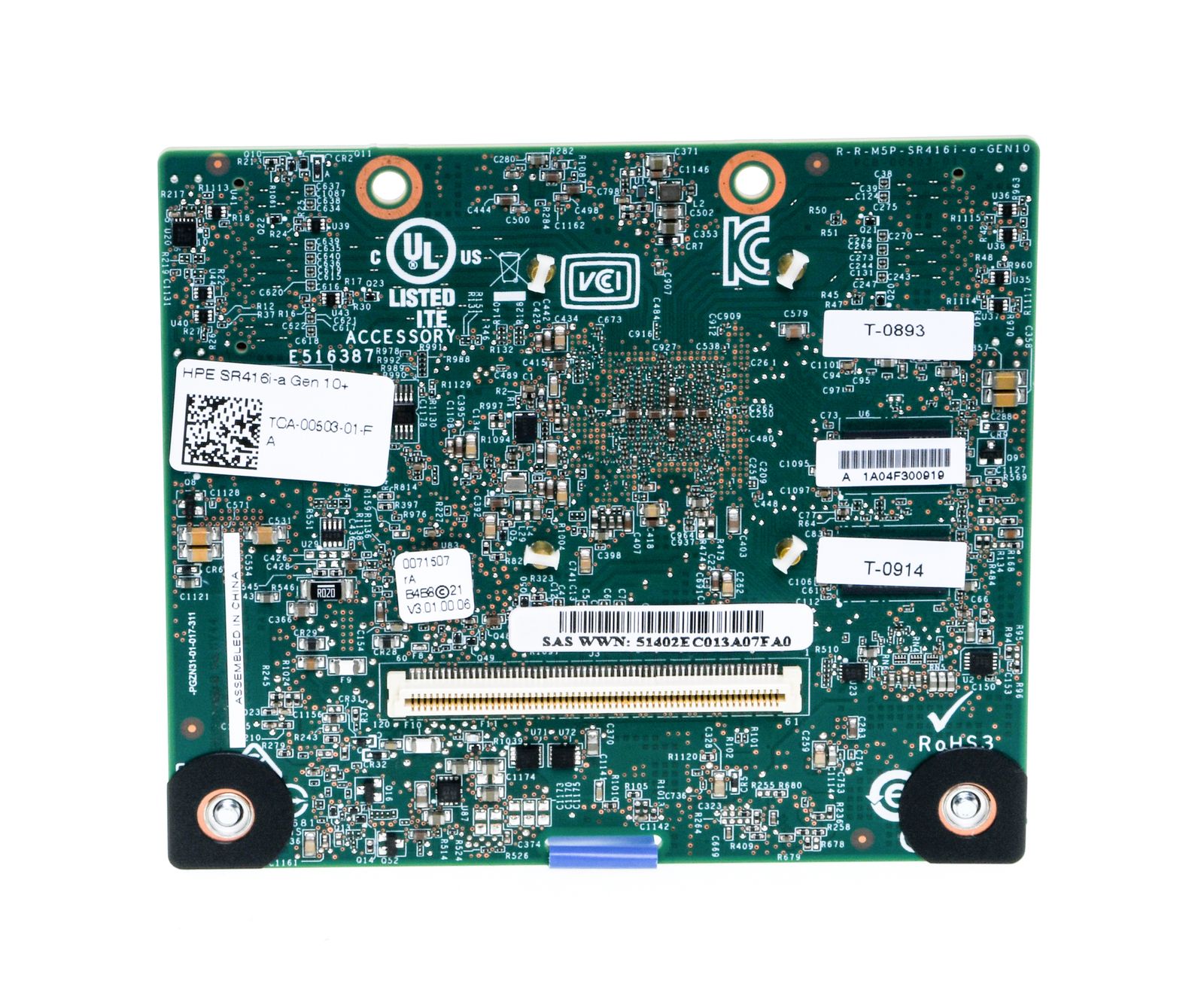

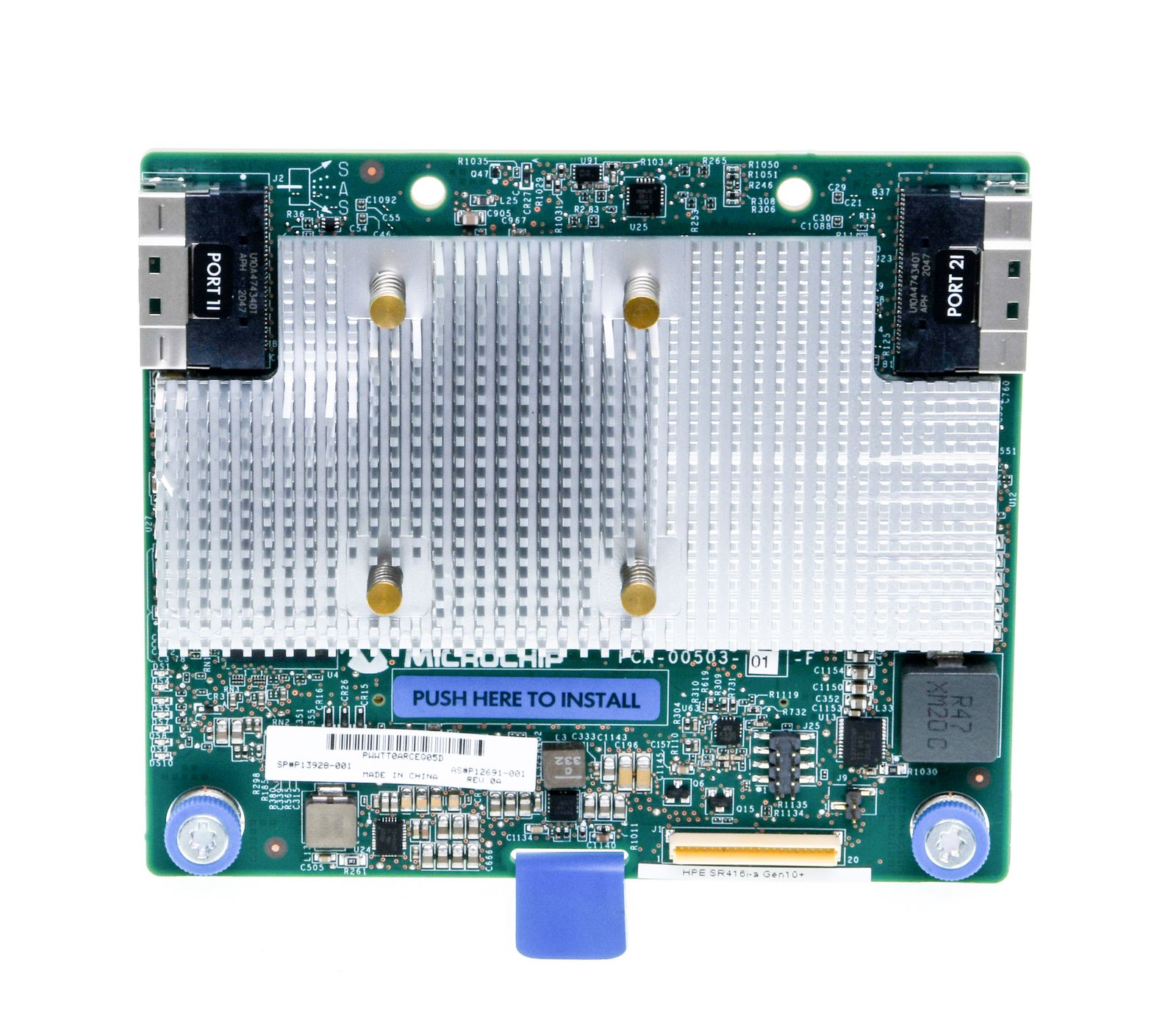

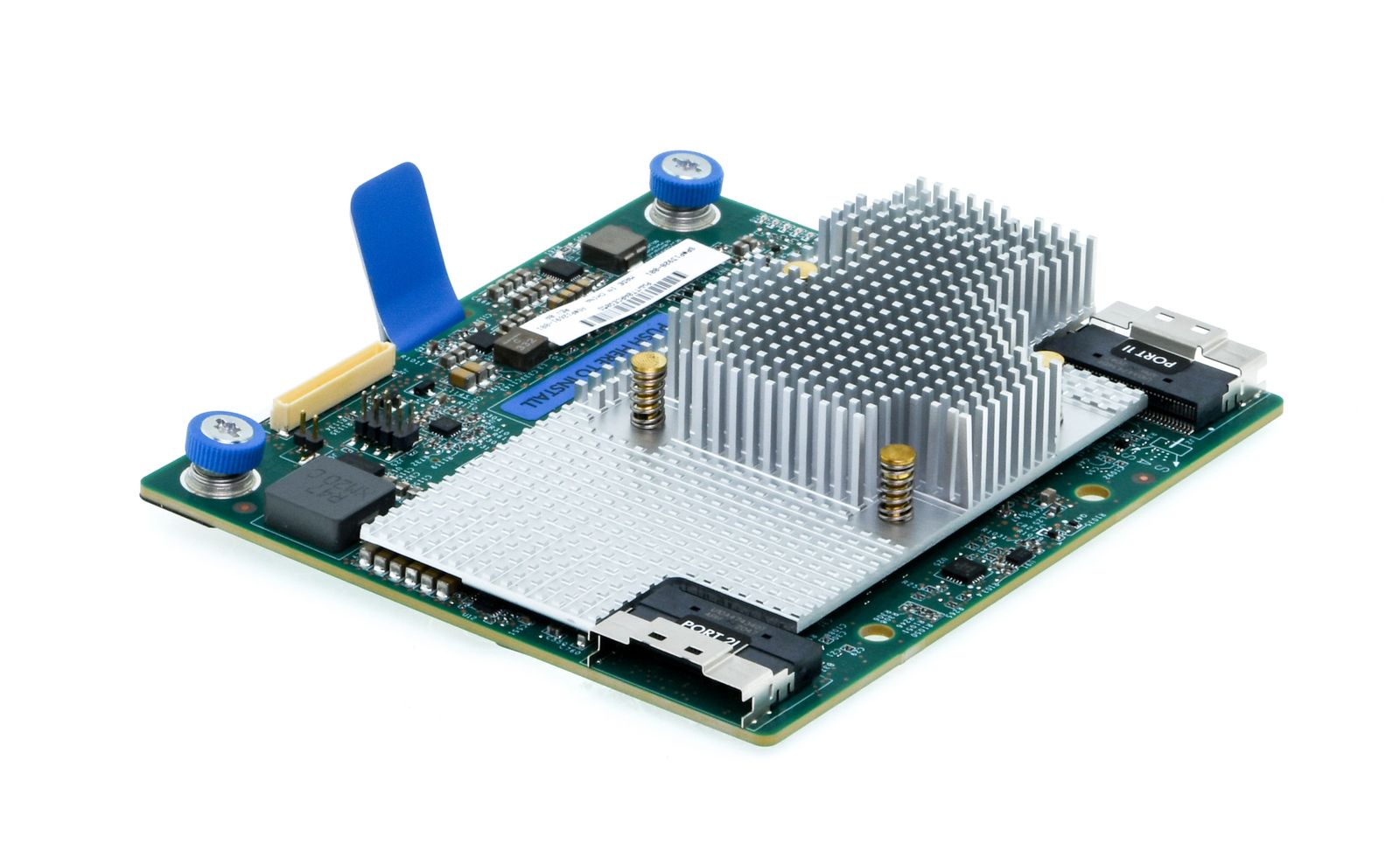

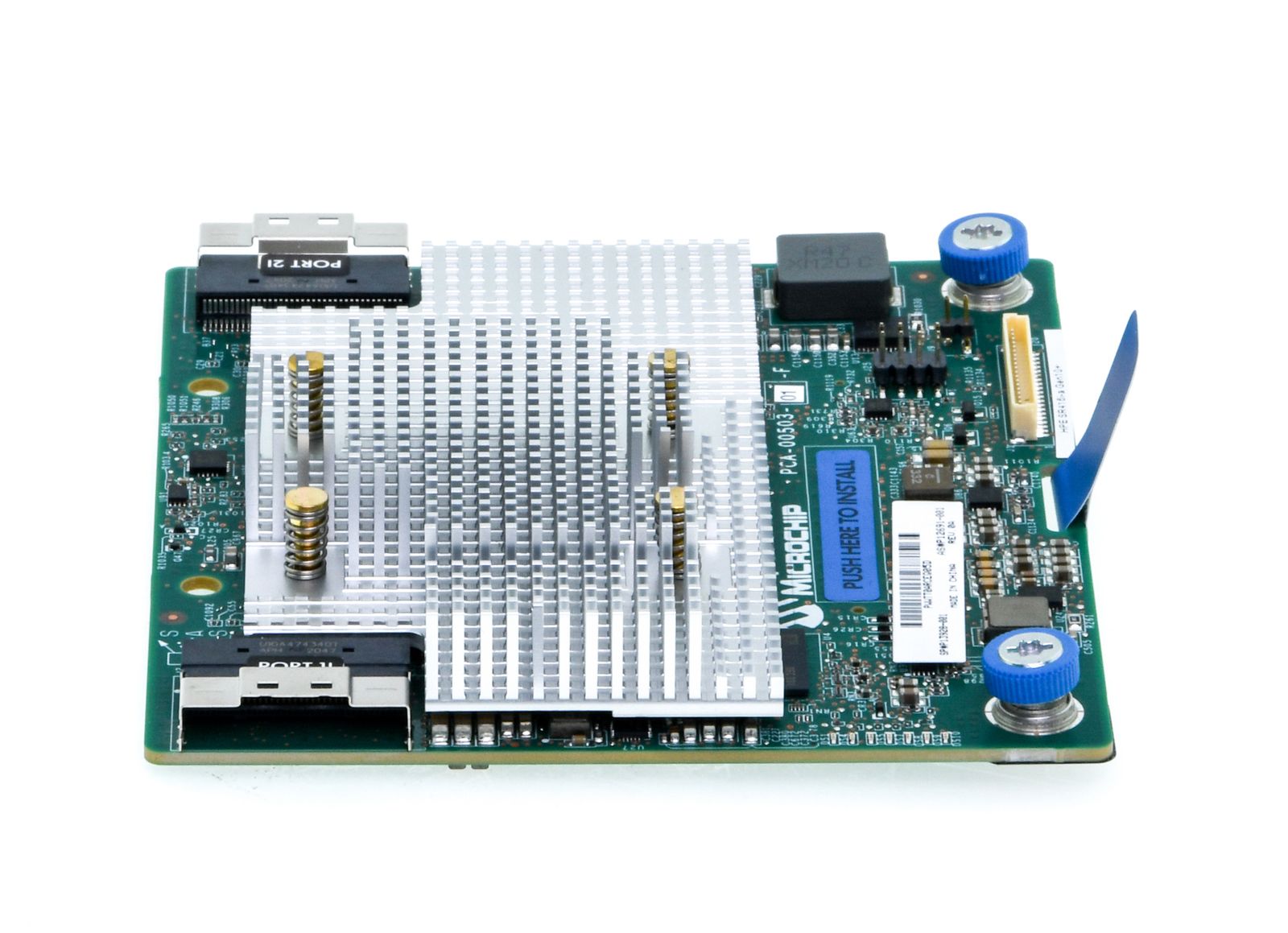

HPE SR416i-a AROC 2-Port RAID-Controller Tri-Mode (24G SAS / NVMe Gen4) with 4GB Cache - P13928-001 / P12688-B21

Item 1 of 6

Item number
125528
Condition
Used
Weight
120 g
Delivery time
on stock and immediately available
Availability
10 in stock
€ 699.99 *
* Incl. VAT excl. Shipping
Your choice
  • HPE SR416i-a AROC 2-Port RAID-Controller Tri-Mode (24G SAS / NVMe Gen4) with 4GB Cache - P13928-001 / P12688-B21
  • Price with upgrades:

    • € 699.99

Description

Description: HPE SR416i-a AROC 2-Port RAID-Controller Tri-Mode (24G SAS / NVMe Gen4) with 4GB Cache - P13928-001 / P12688-B21

NVMe interface: NVMe Gen4 U.3 (backwards compatible to NVMe Gen3 U.2)
SAS interface: 24 Gb/s (backwards compatible to 12 Gb/s and 6 Gb/s)
SATA interface: 6 Gb/s
Cache: 4GB DDR4-3200 MHz
Battery Pack: possible, not included
RAID level: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM (Advanced Data Mirroring)
Operating mode: Mixed mode (RAID and JBOD mode simultaneously)
SSD acceleration: not activated, optionally possible (via SmartCache license)
Internal data lanes: 16
Ports: 2x internal SFF-9402 (SlimSAS)
Type of adapter: Type-a Modular Form Factor
Host interface: PCIe Gen4 x8
Data transfer rate: up to 24 GB/s bi-directional throughput and up to 3.5 Mio IOPS
Supported sectors: 512-byte devices (512n/512e)
Special feature: -

Suitable for: HPE ProLiant DL325 Gen10 Plus v2
  HPE ProLiant DL345 Gen10 Plus
  HPE ProLiant DL360 Gen10 (with Basic Carrier backplane only, SAS & SATA support only)
  HPE ProLiant DL360 Gen10 Plus
  HPE ProLiant DL365 Gen10 Plus
  HPE ProLiant DL380 Gen10 (with Basic Carrier cage only, SAS & SATA support only)
  HPE ProLiant DL380 Gen10 Plus
  HPE ProLiant DL385 Gen10 Plus v2

Related part number(s):
Option Kit No.: P12688-B21
Renew Option Kit No.: P12688R-B21
Spares Part No.: P13928-001
Part No.: -
Renew Part No.: -
Assembly No.: P12691-001

Condition: used, very good
Included in delivery: 1x controller
